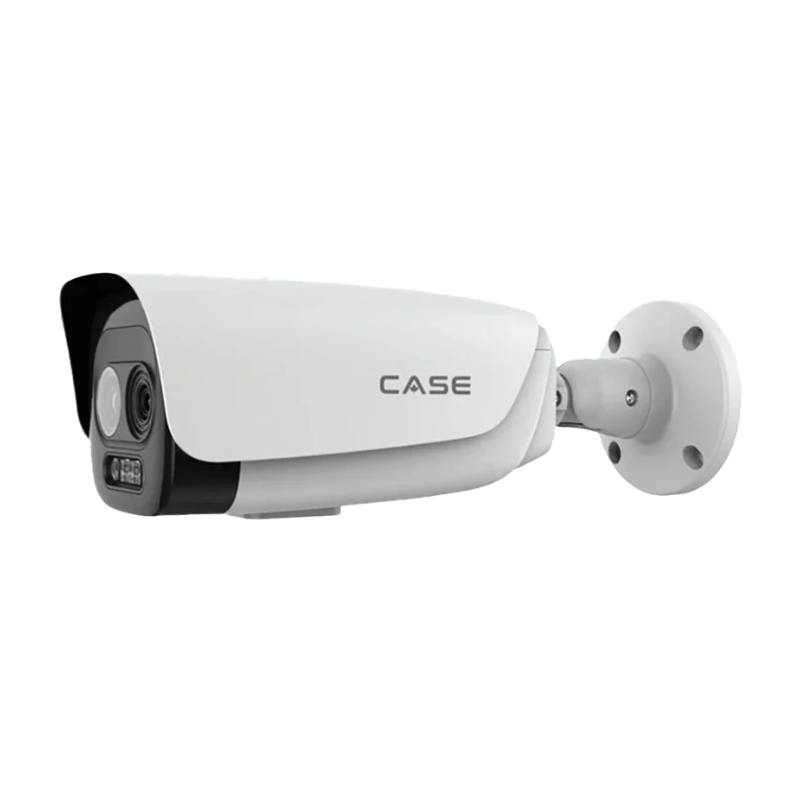

CASE CS-I5LQ T-4mm – Intelligent Thermal Bi-Spectrum Bullet Camera

The CASE CS-I5LQ T-4mm is a professional-grade Intelligent Bi-Spectrum Thermal Camera engineered to provide early fire detection, precise temperature monitoring, and advanced AI-powered security analytics. By combining thermal imaging with a high-quality optical camera, it delivers superior situational awareness regardless of lighting conditions, smoke, fog, or adverse weather.

Designed for warehouses, manufacturing plants, power stations, logistics facilities, chemical plants, oil & gas sites, airports, and other critical infrastructure, the camera continuously monitors temperatures from -15°C to +550°C while detecting abnormal heat signatures before they become hazardous.

Its integrated AI engine supports intelligent perimeter protection, Human & Vehicle Classification, Smoke Detection, Audio Exception Detection, and Video Exception Detection. The camera also features an impressive 80-meter infrared range, IP67 weatherproof protection, and industrial-grade surge and ESD protection, making it suitable for demanding outdoor environments.

Key Features

• Intelligent Bi-Spectrum Thermal & Optical Camera
• Vanadium Oxide Uncooled Thermal Sensor
• Fixed 4mm Optical Lens
• Temperature Measurement Range: -15°C to +550°C
• Temperature Accuracy: ±0.5°C
• Thermal Sensitivity: ≤50mK (@25°C, F1.1)
• Thermal Field of View: 56°
• Optical Field of View: 88°
• Built-in AI Fire Detection
• Smoke Detection
• Human & Vehicle Classification
• Tripwire Detection
• Double Tripwire Detection
• Perimeter Protection
• Audio Exception Detection
• Video Exception Detection
• High Temperature Alarm Display
• Up to 80m Night Vision
• Excellent Low-Light Performance (0.002 Lux)
• 120dB Wide Dynamic Range
• IP67 Weatherproof Housing
• Surge Protection: 4000V
• ESD Protection: 6000V
• Operating Temperature: -40°C to +65°C
• Ideal for Industrial Safety, Fire Prevention & Critical Infrastructure Monitoring

Ideal Applications

• Industrial Manufacturing Facilities
• Warehouses & Distribution Centers
• Power Plants & Utility Sites
• Oil & Gas Facilities
• Chemical Processing Plants
• Airports & Transportation Hubs
• Data Centers
• Solar Farms
• Critical Infrastructure
• Forest Fire & Perimeter Monitoring
