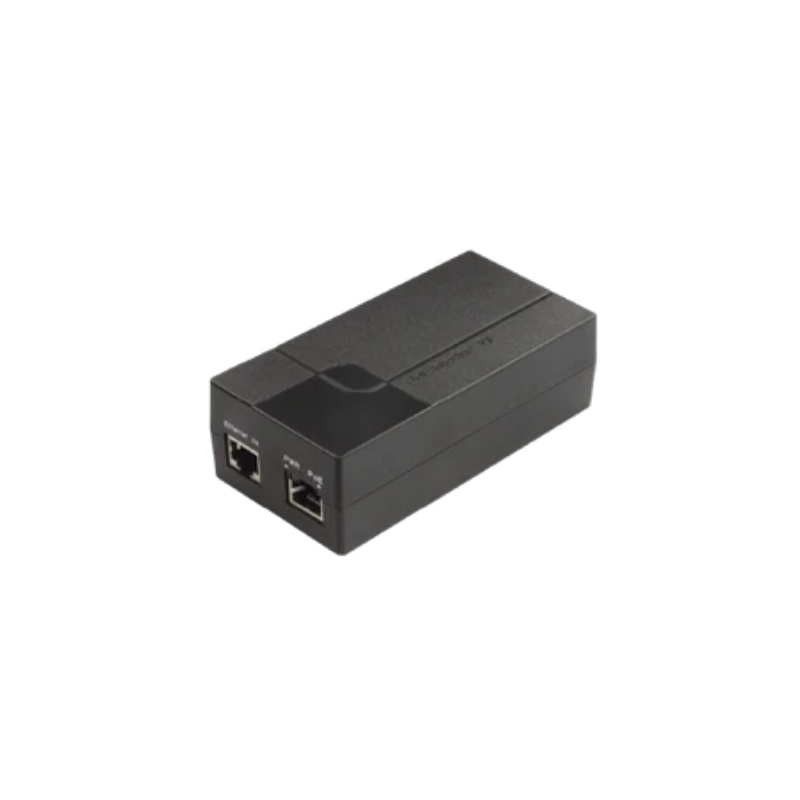

CASE CS-PSE3301AC – Gigabit PoE Injector

The CASE CS-PSE3301AC is a compact Gigabit PoE Injector designed to deliver both power and high-speed data over a single Ethernet cable to IEEE 802.3af compliant devices. Ideal for IP cameras, wireless access points, VoIP phones, and other PoE-enabled equipment, it eliminates the need for separate power cabling, simplifying installation and reducing deployment costs.

Featuring Gigabit Ethernet connectivity, the injector supports data transmission up to 1000Mbps while supplying 52V PoE power with a maximum output of 15.4W (IEEE 802.3af). Its compact desktop or wall-mount design makes it suitable for offices, retail stores, surveillance systems, and commercial networking environments.

Built with ESD protection, universal AC power input, and industry-standard certifications, the CS-PSE3301AC provides dependable and efficient power delivery for professional network installations.

Key Features
Gigabit PoE Injector
IEEE 802.3af Compliant
1 × Gigabit Ethernet Input
1 × Gigabit PoE Output
Up to 15.4W PoE Output
52V Power Output
Supports 10/100/1000Mbps Networks
Compatible with Cat5e or Higher (Up to 100m)
Desktop or Wall-Mount Installation
IEC61000-4-2 ESD Protection
Operating Temperature: -20°C to +55°C
Universal AC 100–240V Input
PoE Status Indicator LED
CE, FCC & RoHS Certified
